- 🗸 NEW BLUE DUST CAPS COMING SOON! We are updating our dust caps from red to blue in early 2025. The same durable caps to protect your system, now with a new color for easy identification.

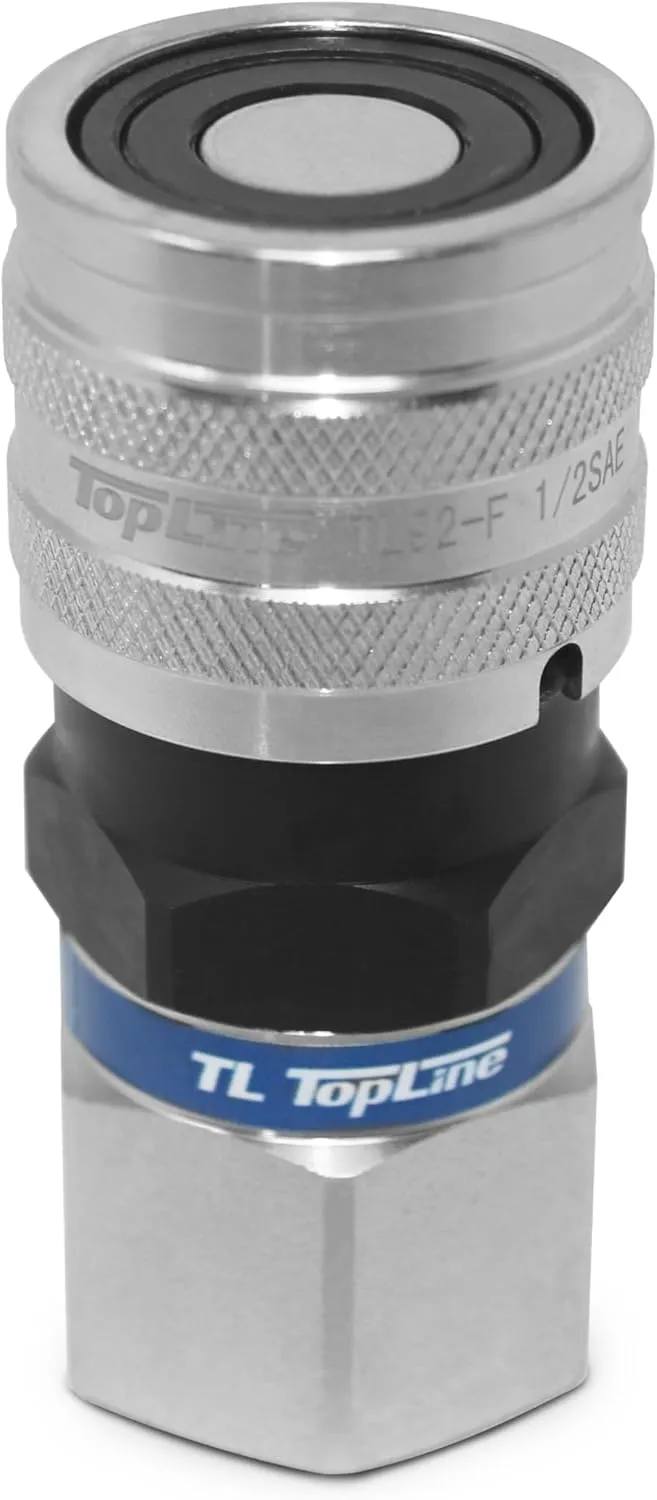

- 🗸 TL22-F 1/2" Body with 3/4" SAE O-Ring BOSS Thread, flat face hydraulic coupler to fit Bobcat and other skid steers. Rated for over 5076 PSI. Built for heavy-duty use.
- 🗸 QUICK & SECURE CONNECTION: Push-connect locking sleeve ensures easy, reliable coupling with no air inclusion or leaks.
- 🗸 DURABLE & CORROSION-RESISTANT: Zinc-plated for long-lasting protection and exceeds ISO 16028 standards.
- 🗸 LESS FLUID LOSS, MORE EFFICIENCY: Flat face design minimizes hydraulic fluid loss during disconnection, improving system performance.
- 🗸 EFFORTLESS USE – The push-connect locking sleeve and heavy knurled sleeves ensure a secure, non-slip grip, allowing for quick and easy connections and disconnections in the field, even with gloved hands."
These couplers are a direct replacement for the standard sized coupler mounted on many models of skid steers and attachments.
Our coupler sizes fit many models of: Bobcat, John Deere, CAT, Kubota, New Holland, CASE, JCB, Thomas, Gehl, Volvo, and ASV skid steers.
Flat Face couplers are designed for applications where hydraulic spillage is a concern.
- Heavy Duty design. Rated at over 5076 PSI
- Couples to any standard 1/2” Flat Face coupler
- Push-connect locking sleeve design
- Exceeds ISO 16028 standards
- Corrosion-resistant zinc plating
- No air inclusion during disconnection
-Heavy knurled sleeves for non-slip grip
- Includes dust caps to protect from the elements
- Flat Face coupler design minimizes hydraulic fluid loss
INTERCHANGES WITH:
Faster FFH Series - FFH08 34SAE F
Parker FE Series - FEM-501-12FO
Stucchi FIRG - 800804008
Dixon HT Series - 4HTOF6
DNP PLT4 Series - FF-HPG-08-12C-SAE
Eaton Aeroquip FD89 - FD89-1005-12-08
Safeway FFE49 Series - FFE495-4-12
Snap Tite 74 - 74C8-12EM
Tomco FE Series - EC4-12
